Our Products

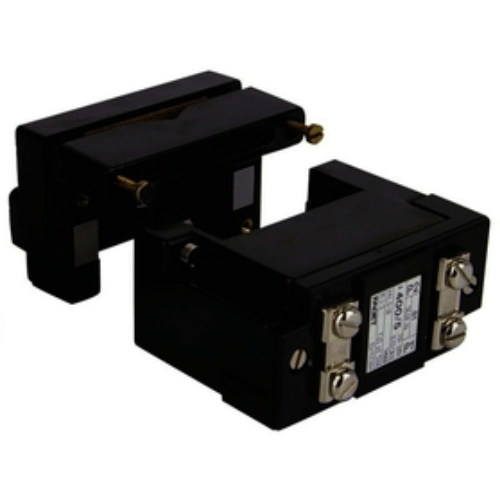

ELEQ Compact Current Transformer, Model RM27

Standard Compliance: Current transformer according to IEC61869-2
Current Ratios: 35/1, 64/1A, class 1
Cable Compatibility: Primary window suitable for insulated cable with a maximum diameter of Ø7.5mm
Circuit Breaker Compatibility: Suitable for use on 3-phase circuit breakers with a phase distance of 17.5mm

ELEQ Current transformers for cable and busbar, RM-series

Primary current capacity: Up to 2500A.
Reliable product with a sealable integrated terminal cover.
Primary window suitable for insulated cables with a maximum diameter of Ø7.5mm.
Revenue metering (RM) feature: Serial number linked with unique measuring data, accessible via the internet.

ELEQ Current transformer with short-circuit bridge, IA-series

Primary current capacity: Up to 1600A.
Reliable product with a sealable integrated terminal cover.
Serial number linked with unique measuring data, accessible via the internet.
Measuring and auxiliary voltage: Up to 440V.

ELEQ Cast Resin Current Transformer, Model GSA(F)

Primary current range: 20A up to 10kA.
Multiple measurement capabilities: Up to 3 measurements within a single housing.
Window sizes: From Ø 40mm to 350mm.
Designed for earth fault detection.
Certified: PTB and KEMA approved for revenue metering (billing).

ELEQ Current Transformer for Switchgear, Model SVA

Reliable current transformer designed for measurement purposes in medium voltage switchgear.
Measuring current capacity: Up to 600A.
KEMA approved for revenue metering (billing).

ELEQ Current Transformer for “CT Powered” Relay, SVR109, Model SVA100

Solutions available for current ranges from 8A up to 896A.
Suitable for primary cable diameter up to 50mm.
SVR109 model: Features a cable length of 110mm with standard connector code FKCVR 2.5/4-ST.
SVA100 model: Comes with a clamp and is suitable for application in Ring Main Units (RMUs), compatible with Woodward SEG WIC1, ABB REJ603, and Schneider MiCOM P114S.

ELEQ Current Transformer, Model SVA160A100

Cast-resin current transformer designed for isolated cable or cable bushing applications, ideal for earth fault detection.
Current ratios available: 100/1A or 60/1A.
Maximum cable diameter: 100mm.

ELEQ Split-Core Current Transformer, Model TQ30, TQ40-B, TQ40-C, TQ50-E, TQ50-L

Split-core current transformer compliant with IEC 61869-2, designed for easy mounting in existing installations.
Current ratios: From 60/1A up to 1000/5A, up to class 0.5 accuracy.
Suitable for use around insulated cables up to 2x Ø42mm.
Colour-coded leads included for easy identification and installation.

ELEQ Split-Core Current Transformer, Model TQ120

Compact split-core current transformer designed for easy mounting in new and existing low and medium voltage systems for protection and measurement purposes.
Compliant with IEC 61869-2 standards.
Current ratios available: From 100 to 600/1A and from 100 to 600/5A.
Suitable for use around insulated cables up to Ø45mm.
Operating temperature range: -40°C to +60°C.
Primarily designed for use around cables with a conus connector.

ELEQ Split-Core Current Transformer, Model TM800 & TM2000

Compact split-core current transformer for easy mounting on busbars or cables.
Primary current range: From 100A up to 2000A.
TM800 model: Suitable for busbars measuring 61x35mm.
TM2000 model: Suitable for busbars measuring 81x32mm.

ELEQ Split-Core Cast Resin Current Transformer, Model GSK(F)

Wide range of cast resin split-core current transformers for measurement, protection, and revenue metering (billing) in existing indoor or outdoor installations.
Primary current range: From 50A up to 10kA.
Window sizes: Ø 40mm up to 350mm.
Combination of measuring and protection features possible within a single product.
KEMA approved for revenue metering (billing).

LEQ Medium Voltage Insulated Current Transformer, Model IGW

Medium voltage insulated current transformer designed for measurement, protection, and revenue metering (billing) for indoor applications.
Primary current range: From 5A up to 2500A.
Rated insulation level: Up to 36kV, SF6 gas-free.
Combination of measuring and protection available in a single product.
Capacitive voltage indication available upon request.
PTB and KEMA approved for revenue metering (billing).

ELEQ Medium Voltage Insulated Current Transformer model IGWF IGHF

Medium voltage insulated current transformer for measurement, protection, and revenue metering (billing) in outdoor applications.
IGWF model: Primary current range from 5A up to 2500A.
IGHF model: Primary current range from 50A up to 3000A.
Rated insulation level: Up to 36kV, SF6 gas-free.
Supports up to 5 measuring cores in one housing.
Creepage distance: Up to 1120mm.

ELEQ Cast-Resin Bushing type Current Transformer, Type GSR(F)

Cast-resin bushing type current transformer designed for measurement, protection, and revenue metering (billing) for both indoor and outdoor applications.
Primary current range: From 50A up to 15kA.

ELEQ Medium Voltage Insulated Voltage Transformer, Model UGE, UGZ, UGER, UGZR

Medium voltage insulated voltage transformer for indoor applications.
Measuring voltage: Up to 24kV.
UGE model: One-pole insulated, with a primary window suitable for insulated cables up to Ø7.5mm.
UGER and UGZR models: Specifically designed for generator applications.
Maximum insulation level: 24/50/125kV.
PTB and KEMA approved for revenue metering (billing).

ELEQ Medium voltage Insulated Voltage Transformer, Model UGECAK

Metallised voltage transformer with screening against electric fields, allowing mounting with smaller phase distances.
Designed for front or top conus.
Conical socket connection according to DIN 47636 standard.
KEMA approved for revenue metering (billing).

ELEQ Medium Voltage Insulated Voltage Transformer, Model UGEF

ELEQ Medium Voltage Insulated Voltage Transformer, Model UGEF, designed for outdoor applications.
Primary current range: From 5A up to 2500A.
Rated insulation level: Up to 36kV, SF6 gas-free.
Primary window: Suitable for insulated cables with a maximum diameter of Ø7.5mm.
Supports up to 5 measuring cores within one housing.
Creepage distance: Up to 1120mm.

ELEQ Choke Module for Suppressing Ferro-resonance, BE

Choke module for connection with the protection winding.
Function: Suppresses both upper and lower harmonics.
Current ratios: 35/1, 64/1A, with class 1 accuracy.
Equipped with a coil and resistance.
Solid steel case housing: Dimensions of 222x190x229mm.
Available in different models to suit varying burden requirements.

ELEQ Connection Boxes for lighting applications (LS)

Connection boxes suitable for looped circuits wiring with unique ELEQ mantle terminal technology.
Pole diameter compatibility: Available for minimum pole diameters of 74mm, 84mm, or 94mm.
Current ratios: 35/1, 64/1A, class 1 accuracy.
Fuse type: D01, DII, or 10×38.
Transparent, impact-proof cap made from polycarbonate.
Models available with optional Surge Protection Device (SPD).

ELEQ Connection Boxes for lighting and special applications (LS)

ELEQ’s extra strong connection boxes designed for use in extreme environments.
Suitable for mounting inside and outside lighting poles as well as for wall mounting.
Compatible pole diameters: From 100mm to 115mm.
Fuse types: D01, DII, 10×38 and/or circuit breaker.
Protection degree: IP55 for dust and water protection, and IK10 for impact resistance.

ELEQ Connection Boxes for special applications (LS)

ELEQ’s connection boxes designed for special applications, suitable for the installation of (e)VSAs, dimming systems, circuit breakers, and more to meet custom requirements.
Compatible pole diameters: From 74mm to 110mm.
Automatic earthing or double insulated options available.
Primary window suitable for insulated cables with a maximum diameter of Ø7.5mm.
Wide range of electronic devices can be installed.
Customizable based on customer requests.

ELEQ Pillar Boxes, 2RVS Series

Complete programme of stainless steel cabinets for various mounting options: wall mounting, wall flush mounting, and stand-alone assembly.
Designed for use in combination with ELEQ connection boxes.
Available in any RAL colour to suit customer preferences.
Durable and solid construction, ensuring longevity and reliability in various environments.

ELEQ Related
Products

Wide range of fuses available, ranging from 2A to 10A, ensuring compatibility with various systems.
3-cable pull relief: This feature makes the connection box suitable for the use of three ground cables, enhancing versatility.
Triangle key: Designed for pillar boxes, allowing easy opening and closing of the pillar boxes.

ELEQ Analogue Measuring Instrument, E-Line Series

Complete range of high-quality analogue instruments, designed for various applications.
Available types include electromagnetic, moving coil, and bimetallic instruments.
Ship version available for maritime applications.
Customized meters can be tailored to specific customer requirements

ELEQ Transformer meters, meter combined with splitcore CT, TMB and TMBE series

Self-supporting design: Allows the meter to be mounted directly on a high-voltage rail.
Easy to read: The ammeter can be adjusted in two directions relative to the current transformer for optimal visibility.
Primary current range: From 60A up to 2000A.
Installation without dismantling: No need for circuit interruptions during mounting.
Suitable for both cable and busbar applications.

FOTACT contact meters, ultra precise process controllers and monitors, FEIS or FDIS series

Ultra precise controller, compatible with both electromagnetic and moving coil systems.
Measuring instrument equipped with up to 2 relays and 2 adjustable pointers for precise control and monitoring.
Maximum output-power relay: 600VA (≤3A, ≤250V) for reliable performance in various applications.

ELEQ Analogue meter fitted with integrated micro controller, WDIV or CDIV series

Ability to measure every electrical unit, including current and power direction.
Suitable for every wiring system, offering versatility across various installations.
Voltage capacity: Up to 500V, ensuring compatibility with high-voltage applications.

ELEQ analogue frequency meter with built in µP, WFIV series

Analogue frequency meter with built-in microprocessor (µP) for precise frequency measurement.
Voltage range: From 57V to 560V.
Frequency range: 45-65Hz, suitable for a wide range of applications.

ELEQ Intelligent Current Transformer, EM200 Series

Accurate current transformer with an integrated transducer, designed to save time, space, and reduce the risk of failure.
Primary current capacity: Up to 1250A.
Analogue output options: 4-20mA, 0-20mA, and 0-10V for flexible integration.
Special model available for power measurement applications.

ELEQ Current Transformer with Integrated Relay, EM300 Series

Current transformer with an active, integrated relay, ideal for monitoring production processes.
Primary current range: From 0.5A up to 100A.
EM303 model: Features a fixed switching point.
EM305 model: Equipped with an adjustable switching point.
Available with NC (Normally Closed) or NO (Normally Open) contacts for flexible operation.

ELEQ Compact Measuring Transducer, EM400 and EM800 Series

Compact measuring transducer, programmable with multiple input and output parameters.
Suitable for both AC and DC measurements.
Terminals equipped with spring clip technology for easy and secure connections.
True RMS measurement: Available in the EM800 series.
Measuring and auxiliary voltage: Supports up to 440V.

Selectable transducers, EM2000 series

Easily configurable: You can change the configuration at any time to suit your needs.
Auxiliary and measuring voltage: Supports up to 690Vac.
Non-linear output characteristics available for specialized applications.
Class 0.5 True RMS for accurate measurements.

ELEQ Universal Measuring Transducer MT440

Highly accurate universal measuring transducer with the ability to support multiple outputs.
Direct measurement capability up to 600V.
Full galvanic separation ensures safety and accuracy.
MODbus® communication available (RS232/RS485).
Supports up to 4 outputs.
True RMS measurement for precise and reliable readings.

Vitreous Enamelled Adjustable Resistor

Rated 130 watts continuous mounted in free air
High Temperature Vitreous Enamel Coated
Available in resistance range: 11-ohm – 11 Kilo ohm
Excellent short time overload.
Established Product with high stability and proven reliability
Can be fitted with a Thermal Cut-out Switch
Can be mounted either vertically / horizontally or with a Through Bolt.
Custom Built Resistors are our Speciality
Axial & Vertical Mounting Options

Hygrothermostats Type 7001

Hygrothermostats Type 7001 incorporates a room thermostat with changeover contacts.
Designed for combined control of humidity and temperature.
Hygrothermostats Model 7001 also includes a room thermostat with changeover contacts for this combined control.
Full details available upon request.

Current Transformer Protection Unit

A major operational risk with current transformers (CTs) is an open circuit condition in the secondary circuit while the primary circuit remains energized.
This risk can arise during routine maintenance or from damages to leads or contacts.
High voltage transients in this situation may damage the CT winding, potentially leading to further destruction.
The HVR Current Transformer Protection Unit (CTPU) offers protection for your CT against these operational risks.

HVR Varistor for High Impedance Relay

High impedance relay applications may require an HVR non-linear resistor to limit the CT secondary voltage to a safe level during a maximum internal fault condition.
The appropriate HVR non-linear resistor depends on:
- Relay setting voltage
- Maximum secondary internal fault current
Single HVR discs are suitable for secondary internal fault currents up to 50A rms.
For larger fault currents, HVR non-linear resistors with multiple discs connected in parallel are used.

HVR Resistors for Compact Circuitry

100% Active Material
High Surge Energy Rating
High Voltage Withstand
Essentially Non-Inductive
Wide Resistivity Range
Wide Range of Geometries
Custom Solutions Readily Available
Suitable for PCB Assembly
Free Design Service

HVR Pentagon Anti-Condensation heaters

Designed for use in switch and control gear cubicles.
Ideal where a low-wattage heater is needed to prevent condensation.
Consists of a vitreous enamelled resistor mounted in a sheet steel case.
Includes a removable perforated sheet steel cover.
Features a cable entry grommet at each end.
Equipped with M4 terminal screws on the resistor.

At HNCC Trading FZE, we supply a diverse range of high-quality electrical components and systems designed to meet the demanding standards of the power and telecommunications sectors

Stay updated with our latest news, promotions, and tech insights.

We are supplier of materials to such prestigious clients like, Saudi Electricity Company (SEC), Alfanar Company, SSEM, Al-Toukhi, Cogelex, ABB & Siemens, Al-Babtain Contracting Co. & Al.Gihaz Holding, to name a few.

Company

Our Partners

Connect With Us

Copyright © 2024 HNCC Trading, All rights reserved. Powered by Cybersoftvantage.
